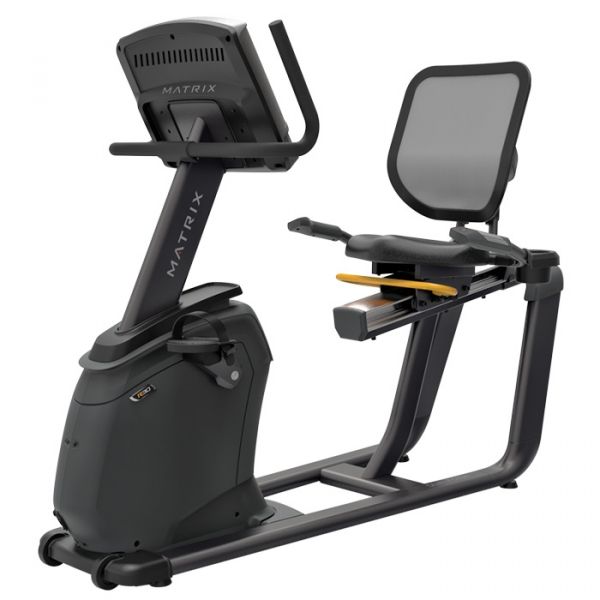

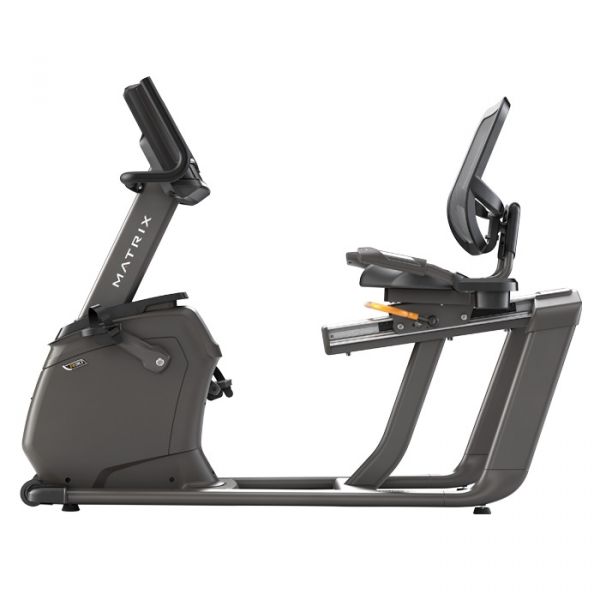

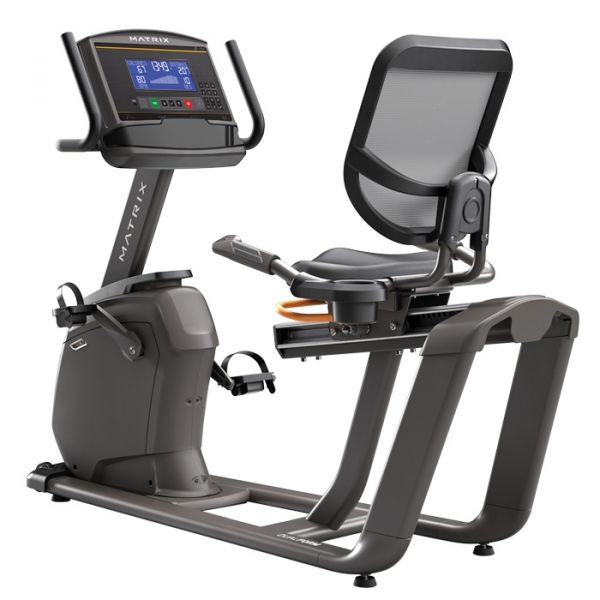

Matrix R30 Recumbent Exercise Bike with XR Console | Demonstrator

Matrix R30 Recumbent Exercise Bike with XR Console | Demonstrator

R30 (with XR console)

Discover a more relaxed way to ride with a stable and versatile recumbent bike that features a recumbent design to comfortably distribute weight and maximize support. Our R30 recumbent bike features our exclusive Dual Form™ frame and Comfort Arc™ seat.

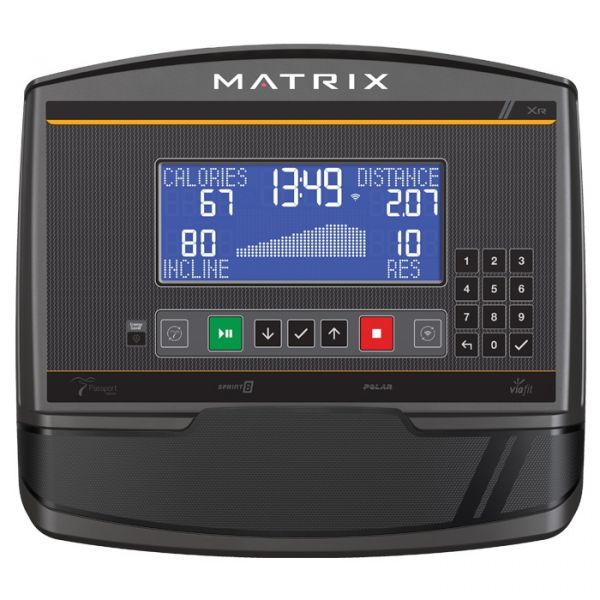

XR Console

SIMPLY PERFECT

Our XR console features a bright, clear display that lets you easily check your workout data at a glance, helping you reach and exceed your goals.

COMPARISON OF 2020 AND 2021 CONSOLES

We've refined our XR console technology to bring you a complete, fully modern fitness experience. Find out what's changing between our 2020 and 2021 consoles.

Note: We will only be selling 2020 XR consoles until Spring 2021.

TRAINING PROGRAMS

Make your workout a beautifully simple experience with five classic cardio programs (see the specifications tab for the full program list).

BLUETOOTH ENABLED

Connect your own Bluetooth heart rate monitor to keep your training on track to reach your goals. Connect to popular training apps via Bluetooth FTMS

ENERGY SAVING MODE

Power Save Mode saves electricity by putting the console into sleep mode if it is inactive for 15 minutes, while still allowing for a quick restart.

Matrix with iFit

Matrix with iFit syncs your equipment with interactive studio classes, global workouts, Google Maps Street View, and over 16,000 workouts led by inspiring trainers. Best of all, your new Matrix equipment includes a one-year iFit membership for your entire family.

Interactivity between iFit and Matrix equipment will be available in 2021 via a free software update.

Sprint 8

This scientifically validated high-intensity interval training program burns fat and builds muscle in short workouts that anyone can fit into their schedule.

R30

20

RESISTANCE LEVEL

Exact force induction brake

RESISTANCE LEVEL

Comfort Arc

SEAT TYPE

MESH BACKREST

A carefully contoured mesh seatback provides ventilation to help keep you cool while you ride.

DUAL FORM™ FRAME

Our Dual Form™ frame significantly improves rider stability over single-post designs and offers a low standover height for easy access.

ELASTOMER SEAT SUPPORT

A unique flexible seat support enhances comfort by moving with your body's natural movement as you ride.

Shorten your workouts to improve your fitness.

---

Exclusive to Johnson Fitness, Sprint 8 can help you reduce fat, tone muscle, and increase energy. Some users have experienced a 27% body fat loss in just 8 weeks without changing their diet. These remarkable results are possible because Sprint 8 is a remarkable approach.

Travel the world by connecting your device to your home TV.

---

The ViaFit connectivity system sends your home workouts to the fitness apps and tools you already use and shares them with the communities you already belong to.

Travel the world, directly from your machine's console.

---

Bring an immersive workout experience to your home with high-definition destination images displayed on your machine's large touchscreen and synchronized with the speed and intensity of your workout. The consoles come preloaded with two destination courses: the Northern Rockies and the American Northeast.

Comfort arc.

---

Matrix's exclusive Comfort Arc seat is ergonomically molded to provide unparalleled comfort, support, and balance during workouts.

Double form.

---

Matrix's exclusive Dual Form frame significantly improves rider stability over single-post designs and offers the industry's lowest step-over height for easy access.

Console
DISPLAY	8.5" extra wide blue LCD (22 cm)
WI-FI ENABLED	No
Bluetooth enabled	Connect to popular training and coaching apps; Connect the wireless heart rate monitor
HDMI port	No
USB PORT	Internal USB port for software updates
SPEAKERS	No
Console applications	No
Ready to prepare	No
VIAFIT Connectivity	No
HEART RATE	Bluetooth Wireless Heart Rate
Console Extras	Built-in reading rack, energy saving mode
Training sessions	5 Total - Manual, Intervals, Fat Burn, Target Heart Rate, Sprint 8
Show comments	Elapsed time, time remaining, miles/kilometers, rpm, pace, heart rate, calories, mets, speed, resistance
Assembled weight	3.5 kg / 8 lbs.
Console Warranty
Home Warranty - Work	1 year
Home Warranty - Parts	5 years
Frame
Assembled dimensions	158 x 64 x 121cm / 62.2" x 25.2" x 47.6"
Assembled weight	70 kg / 154 lbs.
SUPPLEMENTS	Water bottle holder
Flywheel weight	10.5 kg / 23 lbs.
CHASSIS TYPE	Dual form
Handlebar design	Seat mounted with resistance knobs and heart rate handles, front assist handles
Maximum user weight	159 kg / 350 lbs.
Pedal spacing	19.4 cm / 7.6 "
Pedal type	Commercial grade, self-balancing pedals with adjustable straps
Electricity	120 V AC Power Supply, 15 Circuit (voltage may vary outside the US)
Resistance range	20 levels, electronically adjustable
Resistance system	ECB magnetic braking system
Seat adjustment	Forward/backward via easy adjustment lever
Seat type	Comfortable seat, straight arch, interchangeable
Technical specifications
User height range	150 cm-193 cm / 4'11"-6'4"
Guarantee
Home warranty - brake	5 years
Home Warranty - Frame	Lifetime
Home Warranty - Work	2 years
Home Warranty - Parts	5 years
